ThinkCar

THINKCHECK M70

THINKCHECK M70

$189.00
$279.95 $189.00
Sale Sold out
Shipping calculated at checkout.

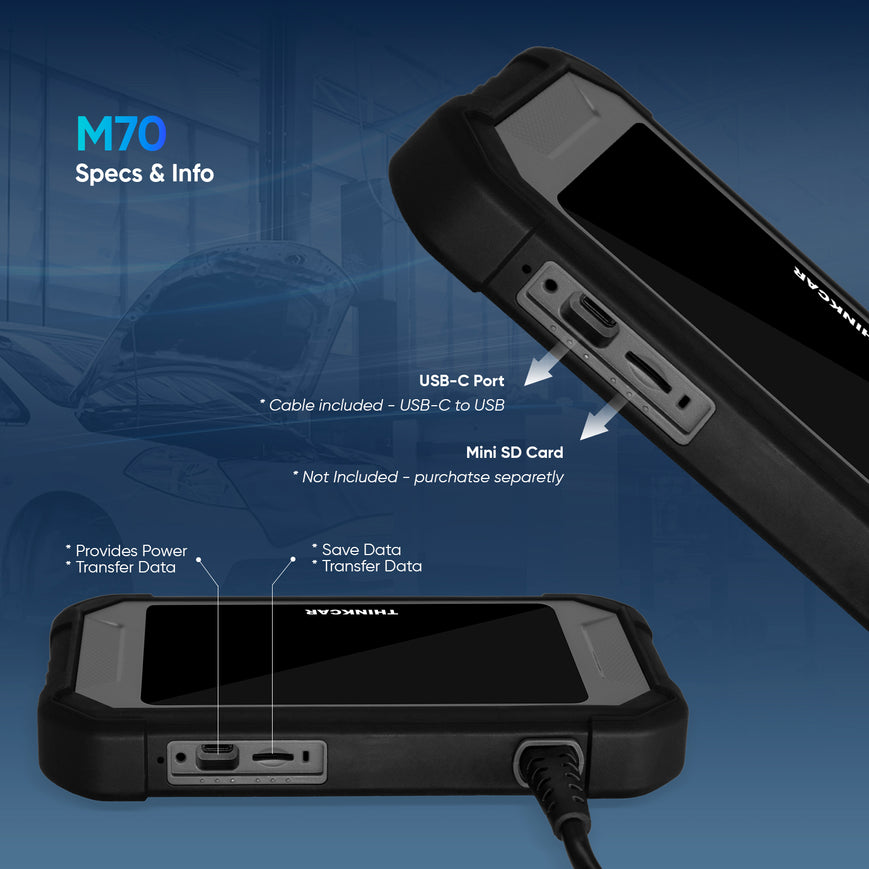

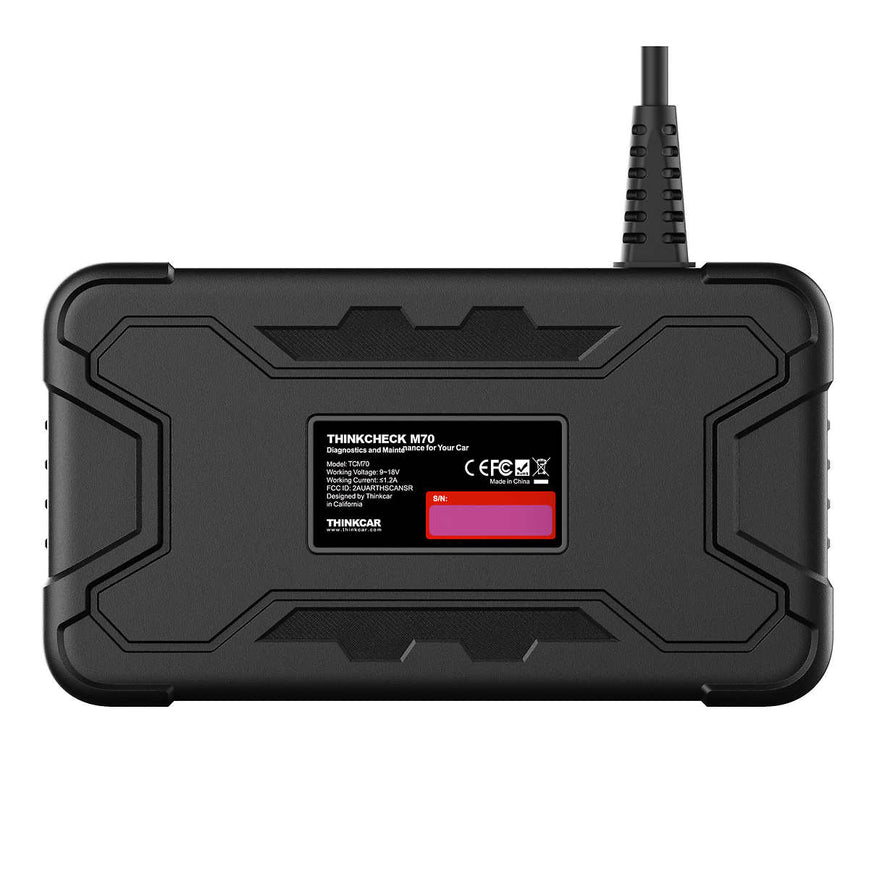

THINKCHECK M70 is a universal OBD2 Automotive Diagnostic Tool that completely supports OBD2 10-mode functions with WIFI connection capabilities for quick software updates. ?One-Click Free Update via WIFI; Automatic Vehicle Health Diagnostic Report, AutoVIN; Data Record and Playback; DTC Lookup, 4 resets for a lifetime free Service, 5” touch screen, Fast 7.0 Android, 16G RAM, 6100mah BAT, Upgraded version of traditional OBD2 scanner.

Maintenance Resets

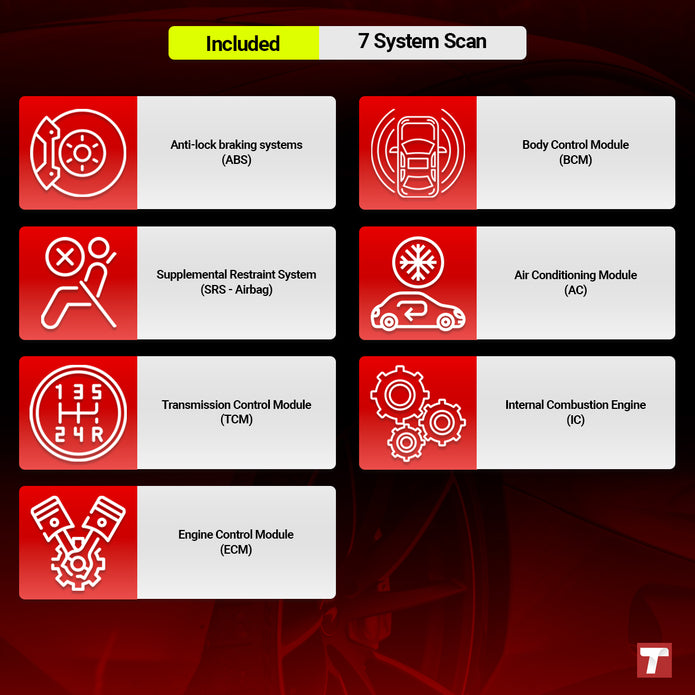

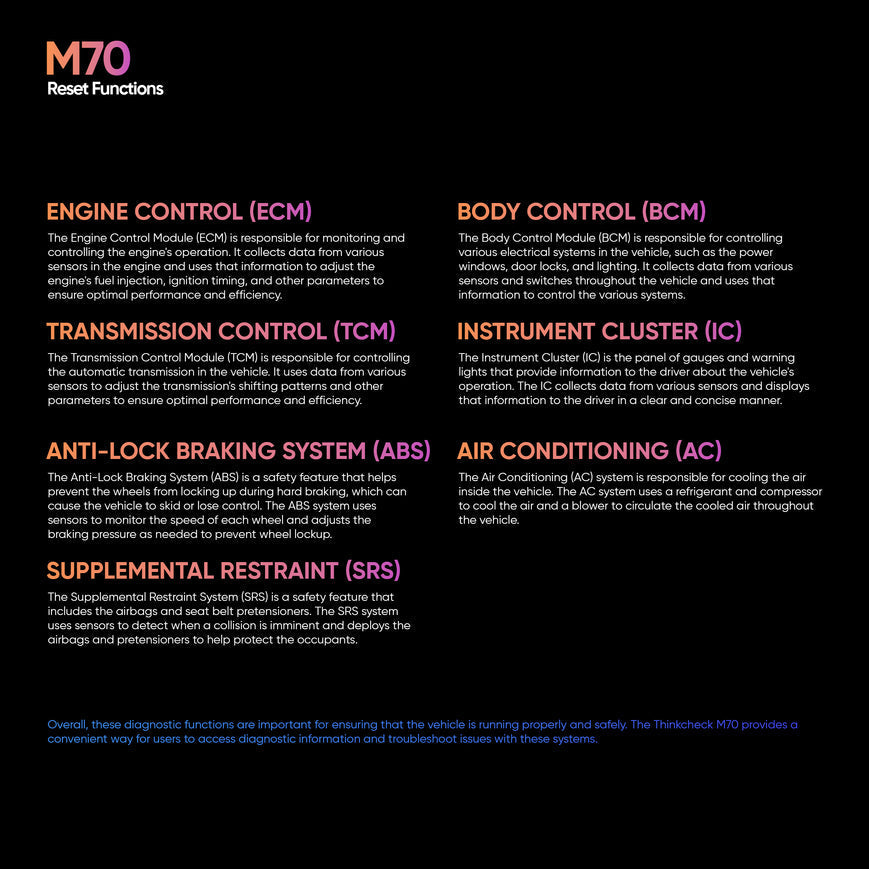

7 System Scan

  • ECM
  • TCM
  • ABS
  • SRS
  • BCM
  • IC
  • AC
Included Standard Resets

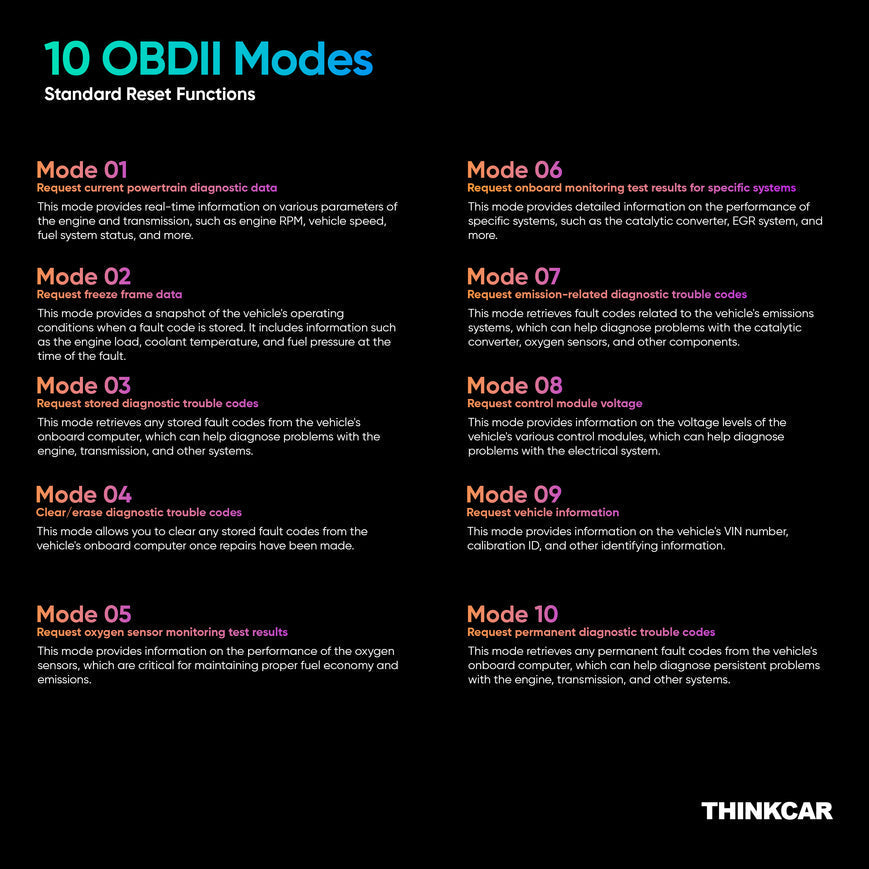

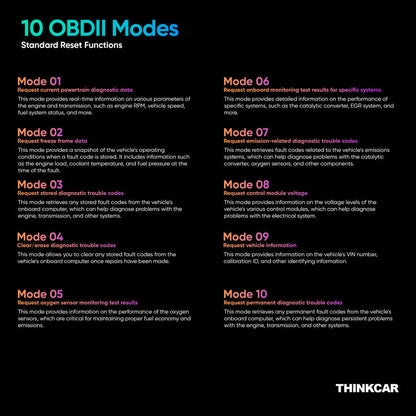

  • Mode 01 - Request Current Powertrain Diagnostic Data: Retrieves real-time data from the vehicle's engine and emission systems, such as engine RPM, vehicle speed, fuel trim, and more.
  • Mode 02 - Request Freeze Frame Data: Retrieves a snapshot of the vehicle's data at the time when a Diagnostic Trouble Code (DTC) was triggered, providing a valuable reference for diagnosis.
  • Mode 03 - Request Stored Diagnostic Trouble Codes: Retrieves the DTCs stored in the vehicle's computer memory, indicating specific issues or faults that have been detected.
  • Mode 04 - Clear/Reset Diagnostic Trouble Codes: Clears or resets the stored DTCs and turns off the Check Engine Light (MIL) after the related issues have been resolved.
  • Mode 05 - Request Oxygen Sensor Monitoring Tests: Monitors the operation and performance of the oxygen sensors in the vehicle's exhaust system, providing data on fuel mixture and emissions.
  • Mode 06 - Request On-Board Monitoring Tests Results: Provides access to the results of various self-tests conducted by the vehicle's onboard systems, including catalyst efficiency, evaporative system, and more.
  • Mode 07 - Request Pending Diagnostic Trouble Codes: Retrieves the DTCs that are pending and have not yet triggered the Check Engine Light, indicating potential issues that require attention.
  • Mode 08 - Request Control of On-Board Systems: Allows control and testing of certain vehicle systems or components, such as turning on/off specific actuators or performing system self-tests.
  • Mode 09 - Request Vehicle Information: Retrieves information about the vehicle's identification, calibration, and programming, including VIN (Vehicle Identification Number), ECU software version, and more.
  • Mode 10 - Request Permanent Diagnostic Trouble Codes: Retrieves any permanent DTCs that cannot be cleared by the vehicle's computer, indicating persistent issues that require further attention.
Note: It's important to note that the diagnostic functions available will vary depending on the vehicle manufacturer make and model.

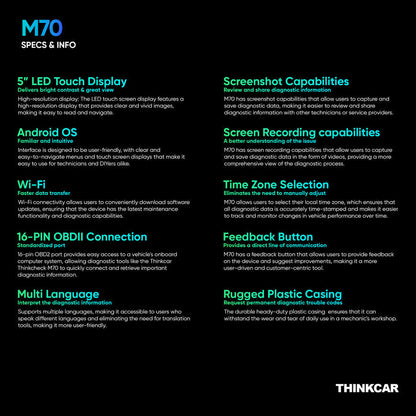

Features
  • 5" Inch LCD Touchscreen
  • Cord Length: 47" Inches
  • Full OBD2 Diagnostic Functions
  • DTC Reading & Clearing Code
  • Data Stream Functions
  • Covers All vehicles after 1996 with OBD Protocol
  • One Click WIFI Updates
  • Optional Maintenance & Service Software Available

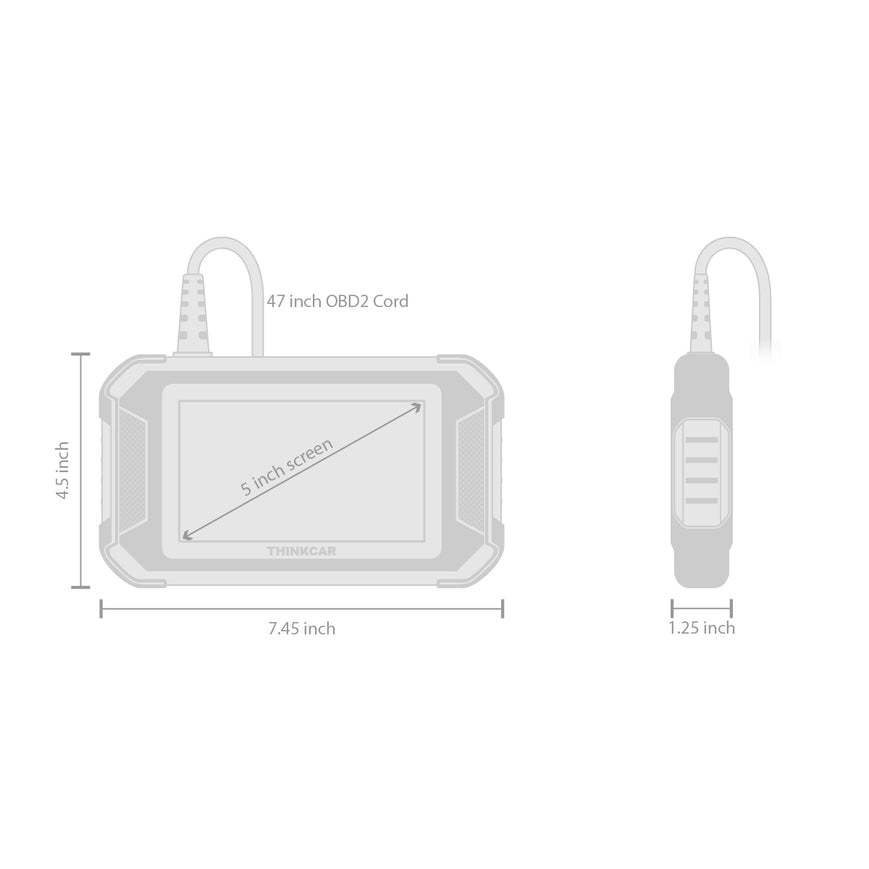

  • Size:
Compatibility

The THINKCHECK M70 features a standard OBD2 16-pin connector, which allows for seamless compatibility with most modern vehicles. The 16-pin connector is the industry standard interface found in vehicles manufactured after 1996, enabling easy and reliable access to the vehicle's onboard diagnostic system.

Note: The specific functionality and features may vary based on the vehicle make, model, and software capabilities.

Software

Lifetime Free Updates for included functions
Specifications
  • Operating System: Fast 7.0 Android
  • ROM/RAM: 16G/1G
  • Battery: 600mAH
  • Bluetooth: 2.1+EDR, 4.0 OBLE
  • WIFI: 802.1 b/g/g



View full details

A deep dive into the nuts & bolts

Features

Totally Mobile

The Phoenix ADAS Mobile features a collapsible design for convenience, easy storage, and unmatched portability. With foldable arms and folding base legs you can easily put away this fully collapsible tool.

Quick Set-Up

With this tool, professionals can calibrate ADAS systems from an auto shop, a parking lot, or even at a client’s driveway. Its unmatched portability and convenience makes your business more productive and profitable.

Unmatched Precision

A high-precision 5-lasers device will assist you to position the ADAS calibration tool with exactness. Featuring a multifunctional base with 360-degree swivel wheels, it allows you to adjust the height and make adaptations to calibrate when working on uneven ground.

Packing List

The Phoenix Mobile ADAS Basic Package comes with a Five Line Laser; a Cross Laser; a Laser Reflector; an Auxiliary Mirror; an L-Type Positioning Bracket; Plumb Bob; a Targets Storage Bracket; two Targets Extension Rods as well as the Lane Departure Warning (LDW) targets.
